Install Bitbucket Using Docker Compose
This article is for those looking for a detailed and straightforward guide on installing Bitbucket using Docker Compose.
Bitbucket is a Git-based source code repository hosting service owned by Atlassian. Bitbucket offers both commercial plans and free accounts with an unlimited number of private repositories.
💾 You can find the repository used in this guide on GitHub.
We’ll use Traefik as our reverse proxy. It’ll handle obtaining cryptographic certificates from Let’s Encrypt for your domain names and route requests to the corresponding services based on those domains.
❗ To obtain cryptographic certificates, you will need A-type records in the external DNS zone, which point to the IP address of your server where Traefik is installed. If you have created these records recently, you should wait before starting the installation of the services. Full replication of these records between DNS servers can take from a few minutes to 48 hours or even longer in rare cases.
In this guide, we will consider the case where you already have a server with Ubuntu Server 22.04 LTS installed on it.
You can find detailed information on how to install Ubuntu Server 22.04 LTS in my guide “Install Ubuntu Server 22.04 LTS”.
Docker Engine and Docker Compose must also be installed on the server.
You can learn how to install Docker Engine on Ubuntu Server by reading Install Docker Engine and Docker Compose on Ubuntu Server”.
In addition, OpenSSH must be installed on the server, and port 22 must be open in order to be able to connect to the server using the SSH protocol.
To install OpenSSH on the server you can use the command:
sudo apt install openssh-serverIf you plan to connect to the server using the Windows operating system, you can use PuTTY or MobaXterm.
This guide covers connecting to the server using the terminal emulator iTerm2, installed on the macOS operating system.
💡 Please note, you will need to open the following TCP ports for access to the services:
- TCP port 80 - to obtain a free cryptographic certificate through the Let’s Encrypt certification center.
- TCP port 443 - to access the Bitbucket web interface.
- TCP port 7999 - for secure SSH Git operations, user SSH key management, encrypted data transfer, and server administration tasks.
We connect to the server on which Bitbucket is planned to be installed.
Now it is necessary to create networks for your services.
We create a network for Traefik using the command:
docker network create traefik-network

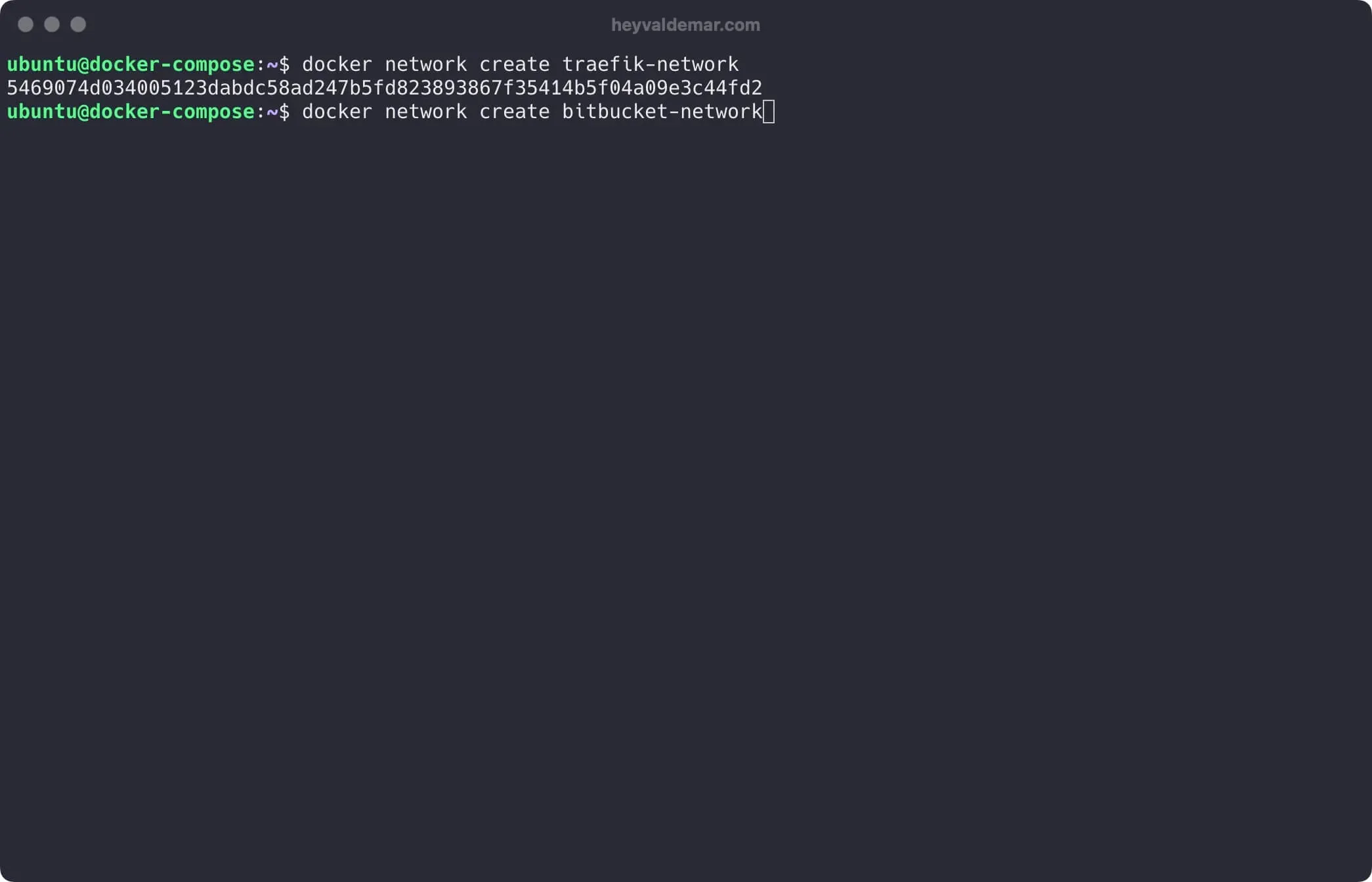

We create a network for Bitbucket using the command:
docker network create bitbucket-network
Next, you need to clone the repository that contains the configuration files, which include all the necessary conditions for Bitbucket to work.

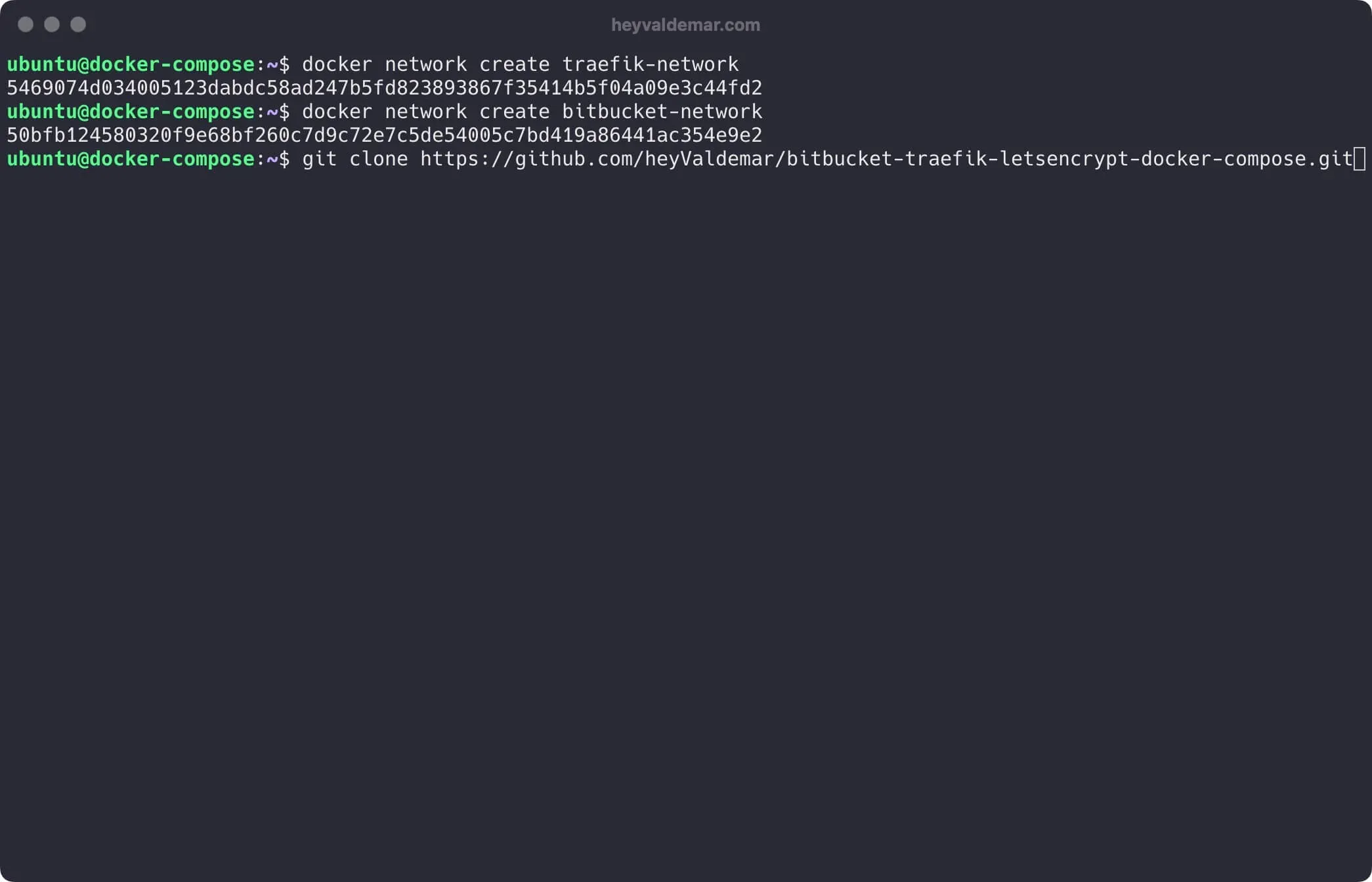

You can clone the repository using the command:
git clone https://github.com/heyValdemar/bitbucket-traefik-letsencrypt-docker-compose.git

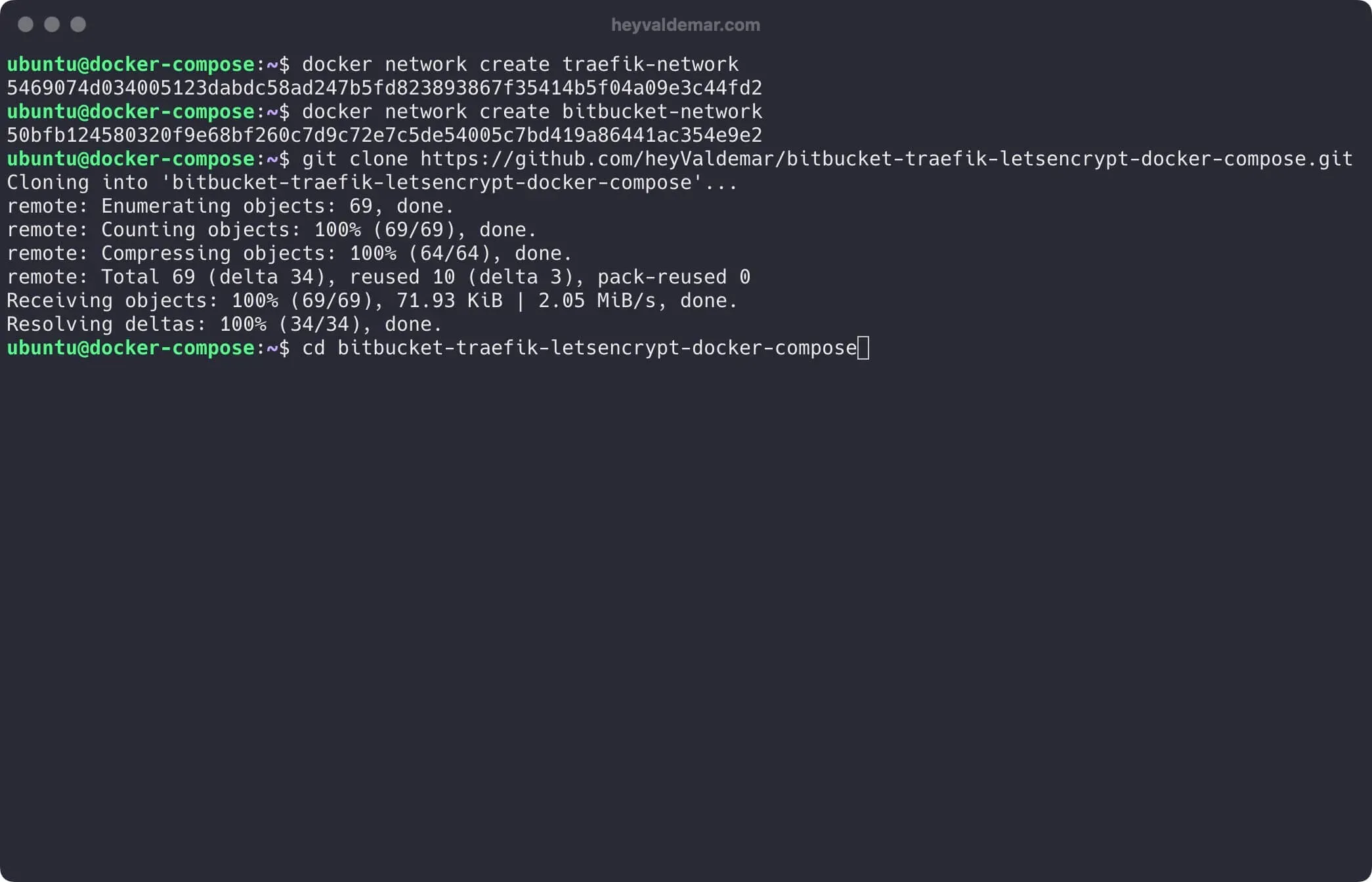

Navigate to the directory with the repository using the command:
cd bitbucket-traefik-letsencrypt-docker-compose
Next, you need to change the variables in the .env file according to your requirements.
💡 Note that the .env file should be in the same directory as bitbucket-traefik-letsencrypt-docker-compose.yml.

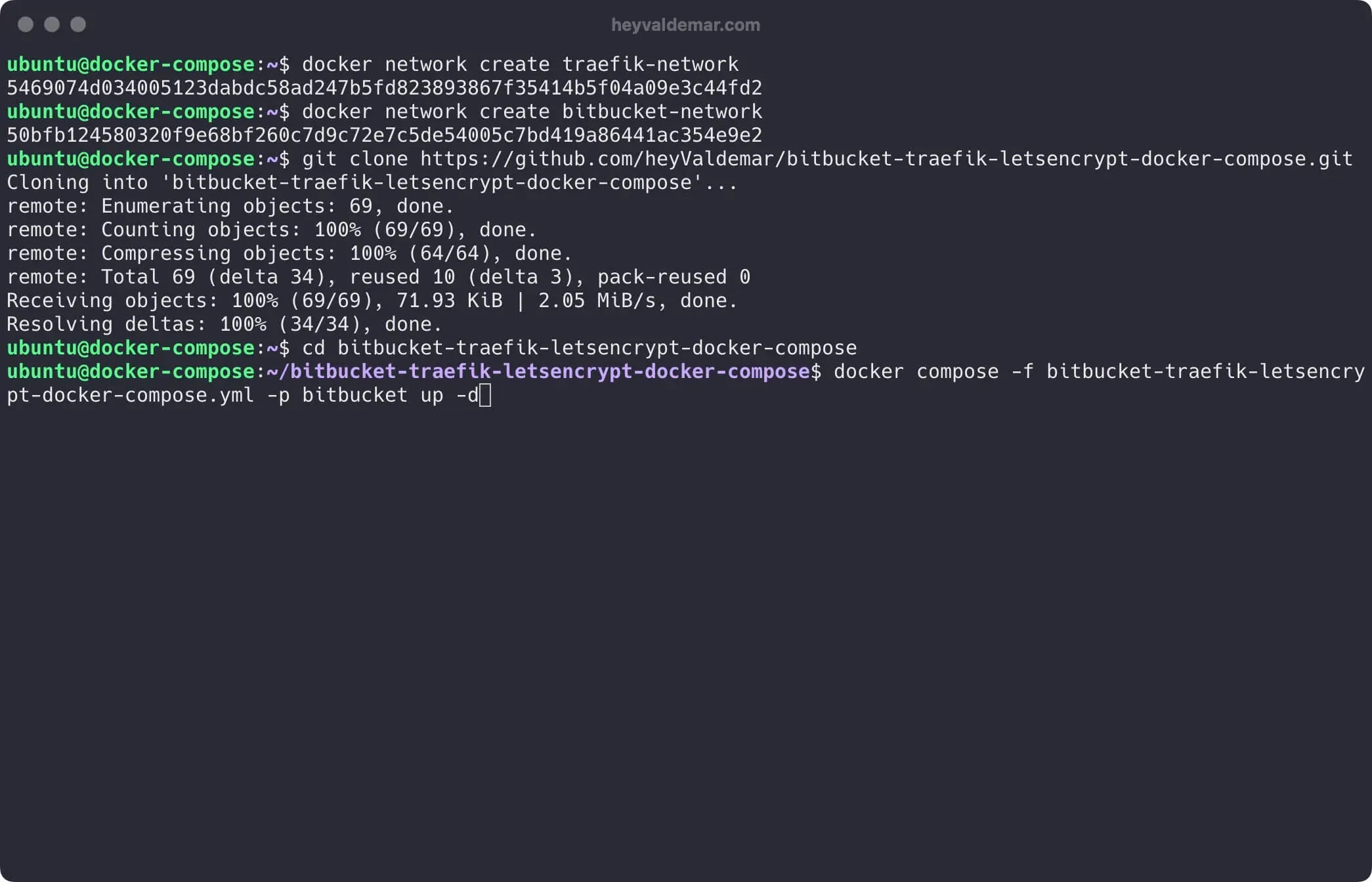

Now let’s start Bitbucket with the command:
docker compose -f bitbucket-traefik-letsencrypt-docker-compose.yml -p bitbucket up -d
To access the Bitbucket management panel, go to https://bitbucket.heyvaldemar.net from your workstation, where bitbucket.heyvaldemar.net is the domain name of my service. Accordingly, you need to specify your domain name that points to the IP address of your server with the installed Traefik service, which will redirect the request to Bitbucket.
💡 Note that you need to specify the domain name of the service, previously defined in the .env file.

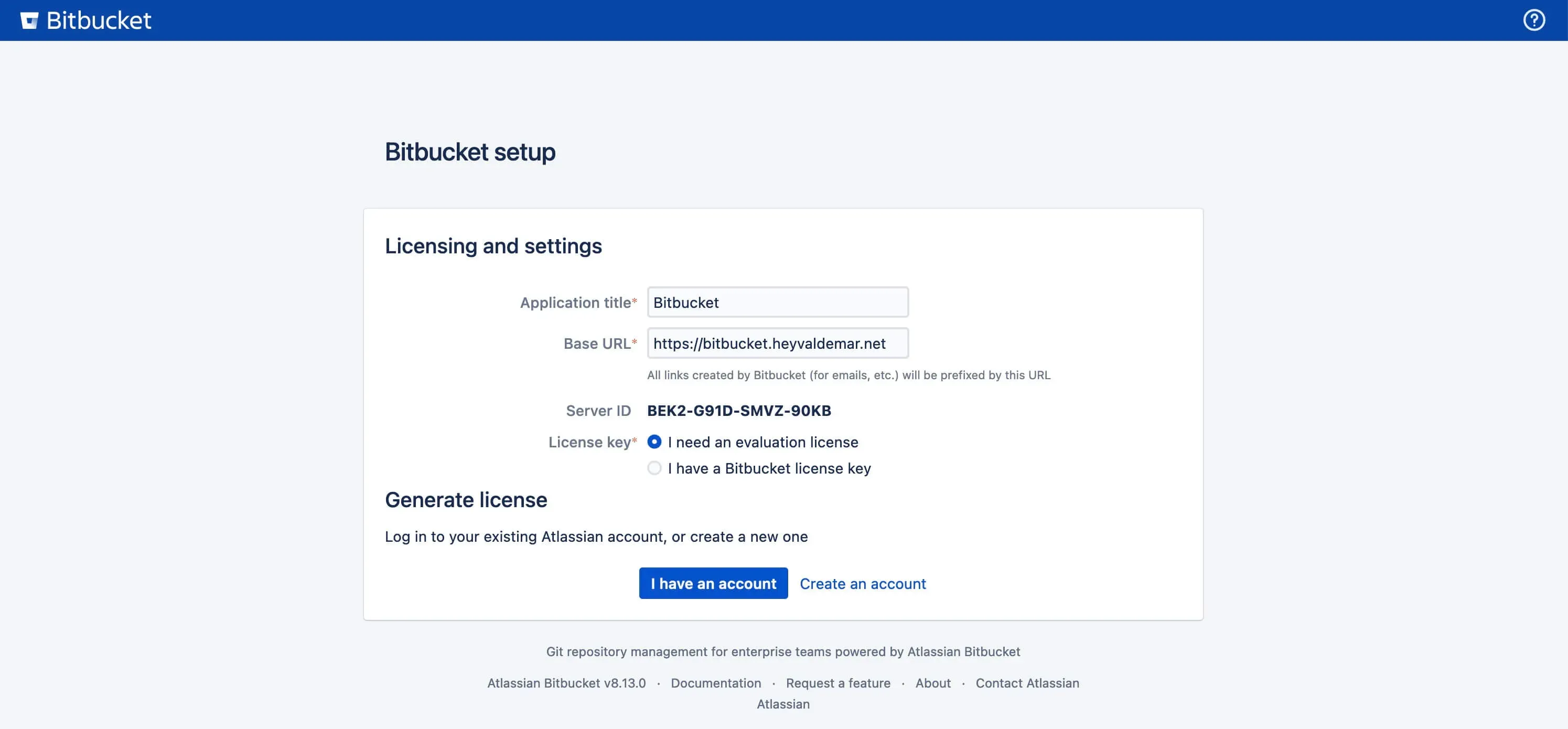

You’ll now need to enter a license key for Bitbucket.
If you don’t have one, you can obtain a temporary key to test out Bitbucket.
Select “I need an evaluation license” and click “I have an account” or “Create an account” to proceed.
If you possess an Atlassian account, input the email address linked to that account in the “Enter email” field, then click the “Continue” button.
Enter the password for your Atlassian account and click the “Log in” button.

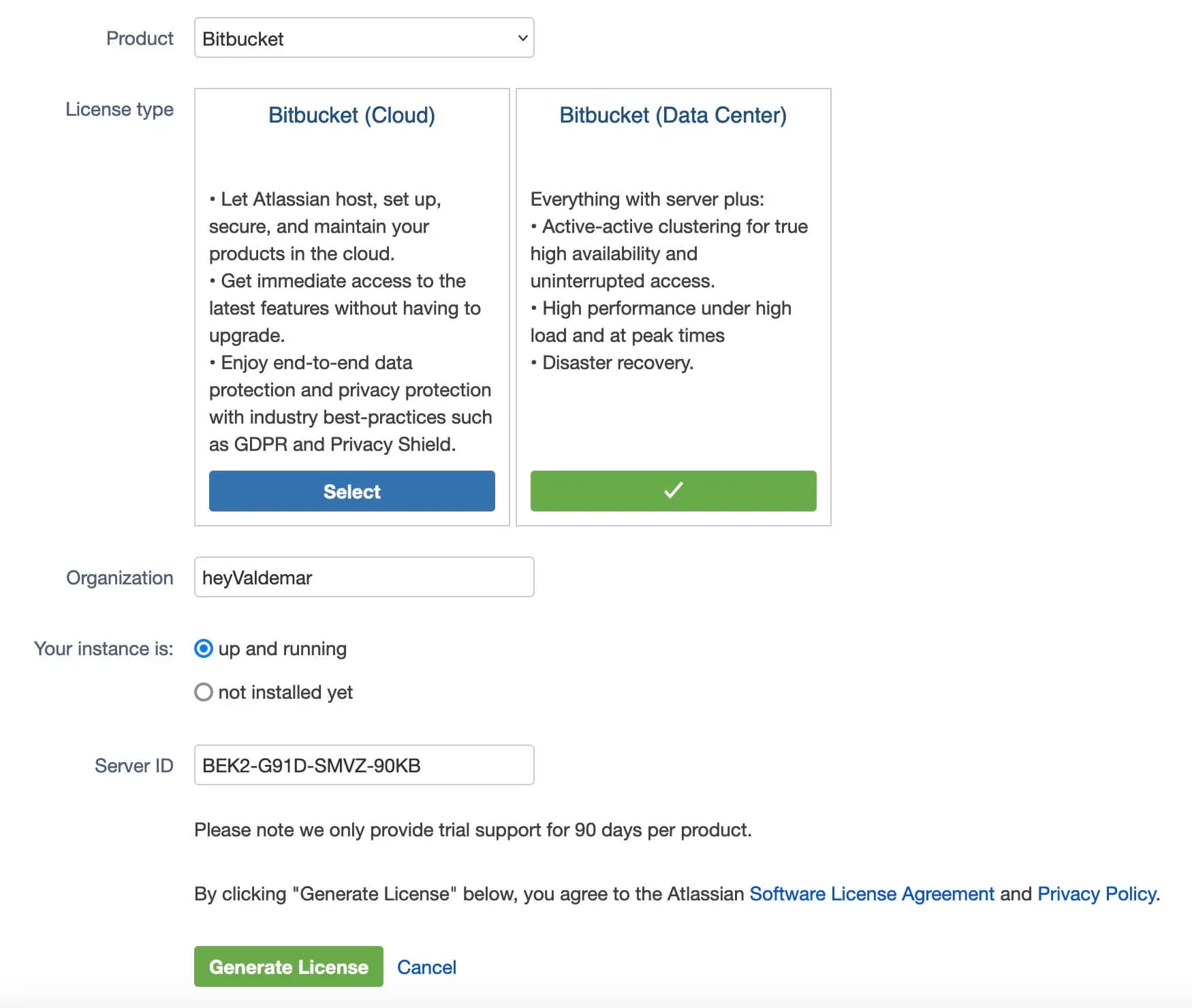

For the next step, indicate the product you need a temporary license key for and enter your organization’s name.
Click the “Generate License” button to secure a temporary license for Bitbucket.

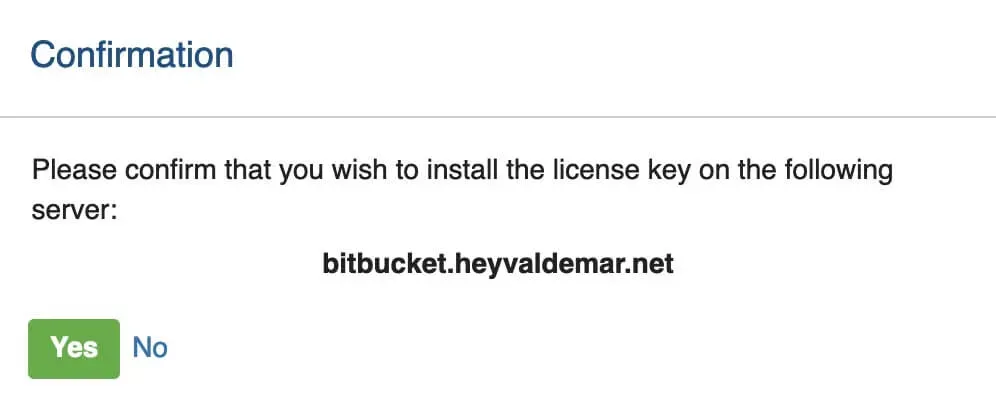

Next, you’ll need to confirm the installation of the temporary Bitbucket license key on your server.
Click the “Yes” button to proceed.

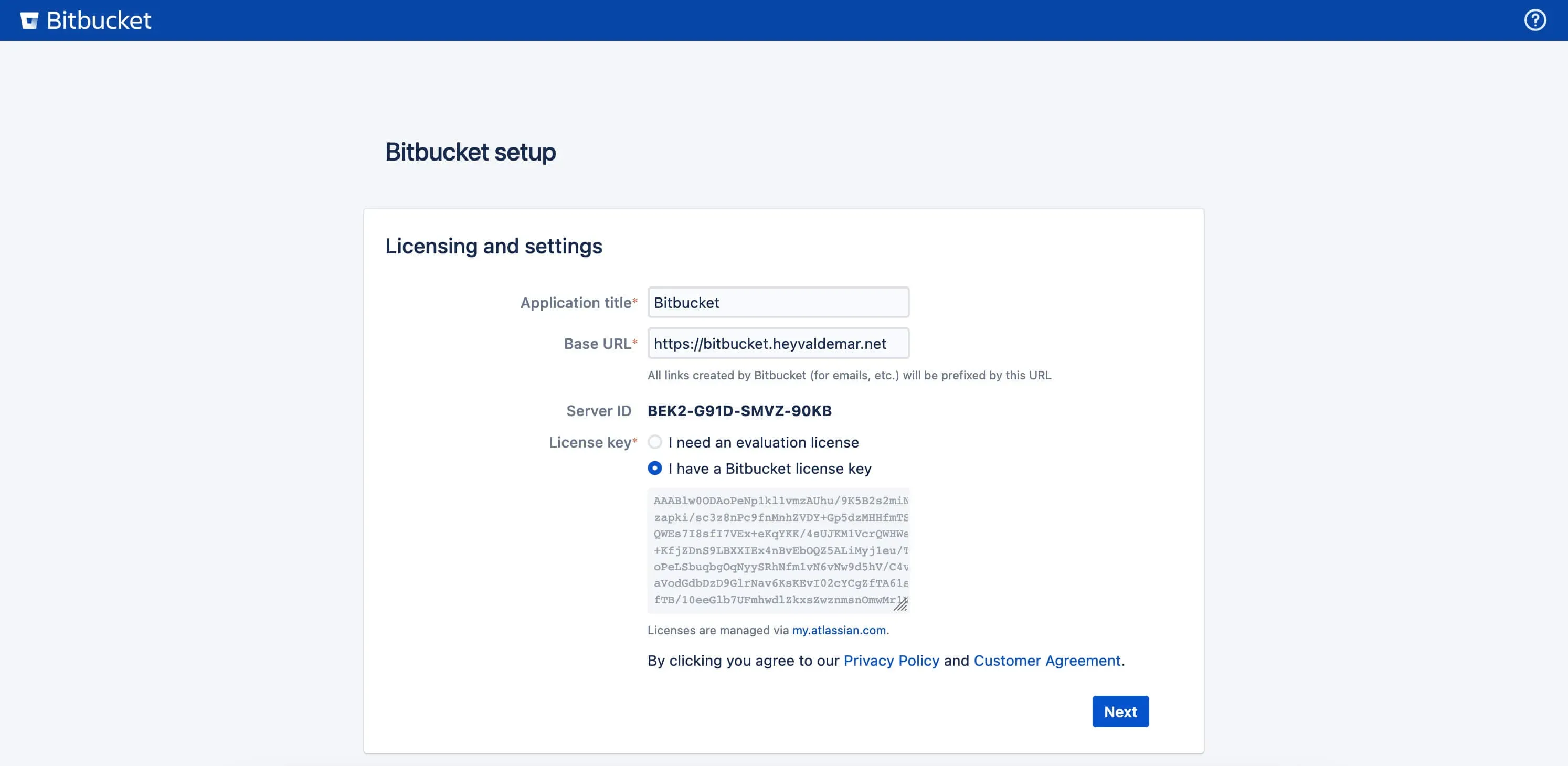

In the “License Key” field, enter the temporary license key you received earlier and then click the “Next” button.

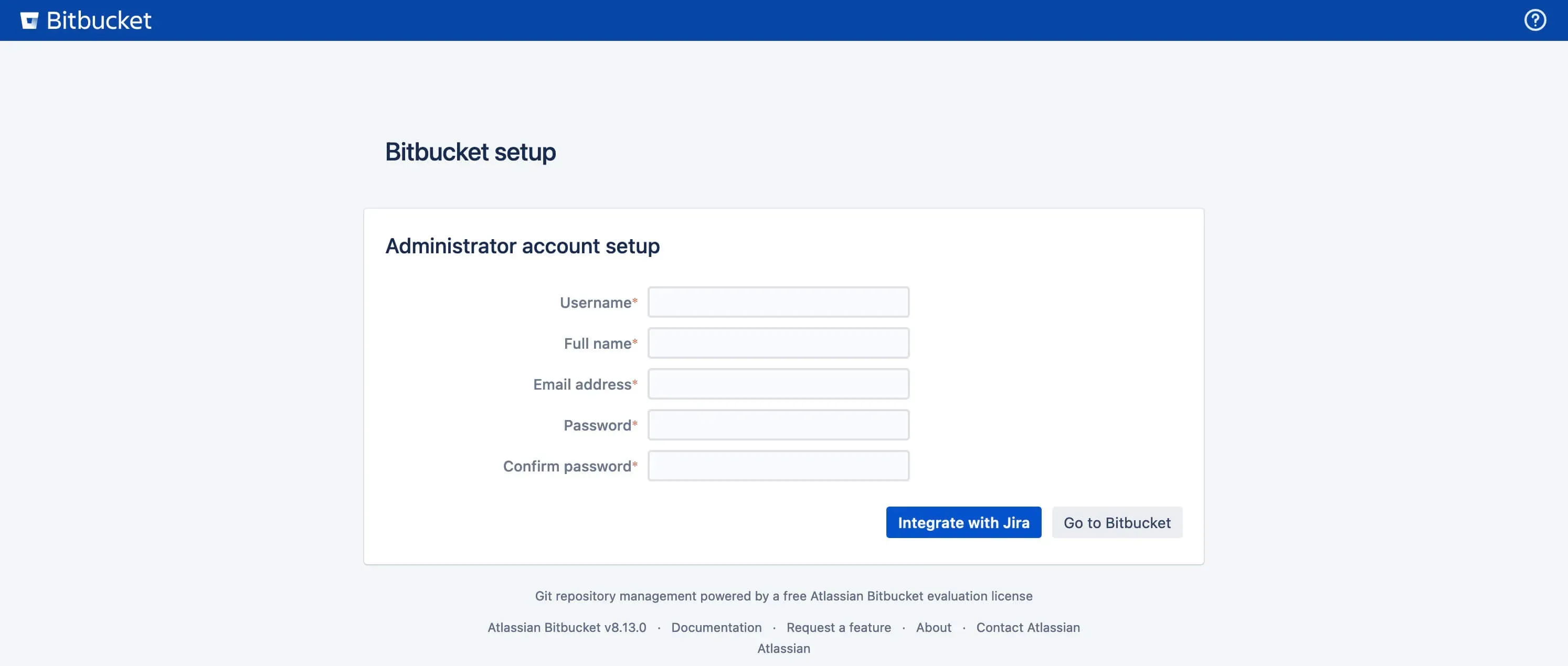

For the next step, please enter your username, name, email address, and password to set up a Bitbucket administrator account.
Click the “Next” button to continue.

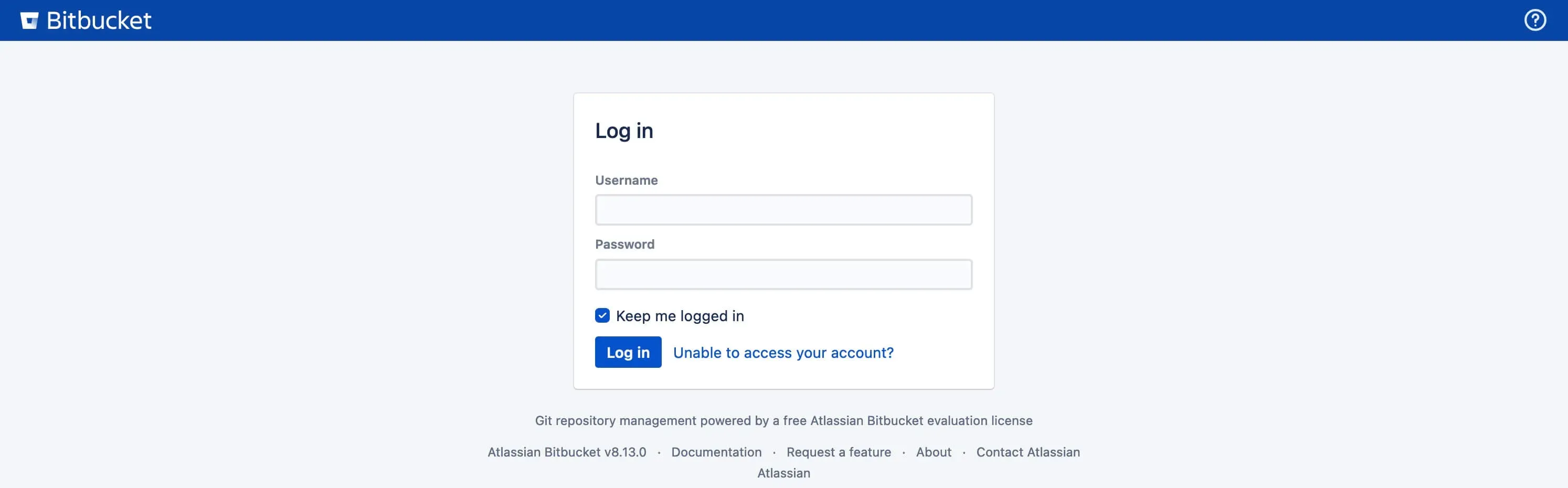

Log in with the account created on the previous step.

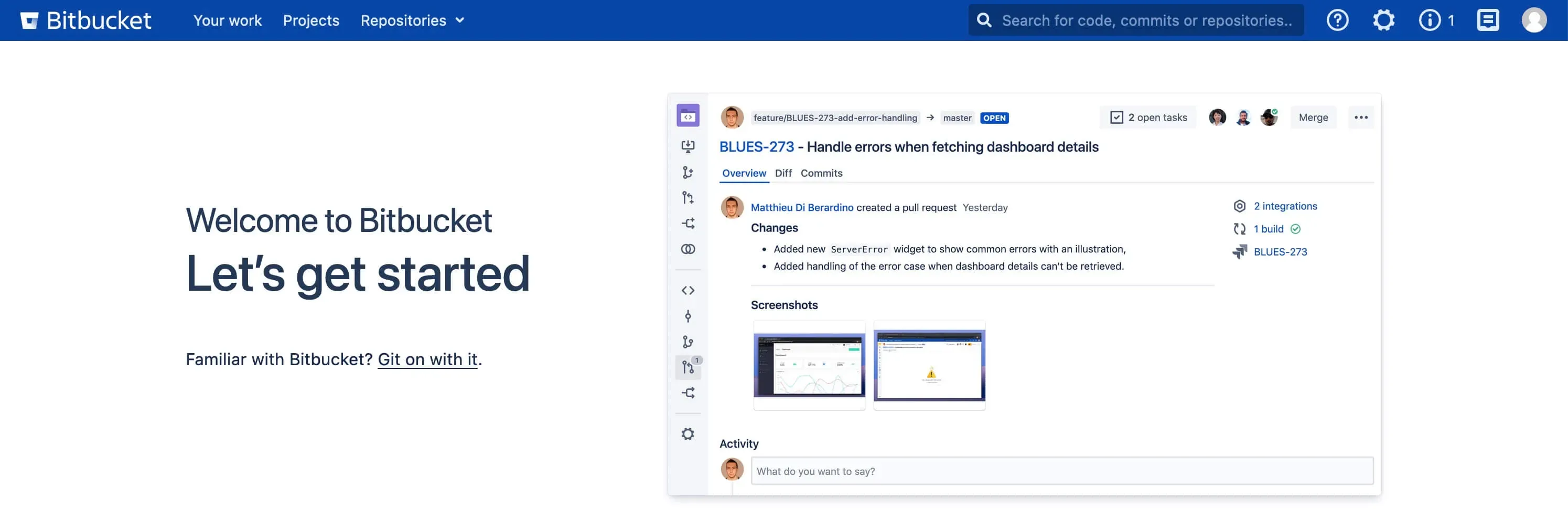

Bitbucket is all set and ready to use.
To access the Traefik control panel, go to https://traefik.bitbucket.heyvaldemar.net from your workstation, where bitbucket.zabbix.heyvaldemar.net is the domain name of my service. Accordingly, you need to specify your domain name that points to the IP address of your server with the installed Traefik.
💡 Note that you need to specify the domain name of the service, previously defined in the .env file.
Enter the username and password previously set in the .env file, and click the “OK” button.
Welcome to the Traefik control panel.
