Install ownCloud Using Docker Compose

This article is for those looking for a detailed and straightforward guide on installing ownCloud using Docker Compose.

ownCloud is the ultimate file management platform, essential for enterprise-grade file synchronization and sharing, expertly tailored to meet your business needs.

TIP

Architecture Context

Choose self-hosted ownCloud when you need on-premises file sync and share with full storage control and LDAP integration. Google Drive or Dropbox provide managed alternatives with native mobile apps and collaboration features. Self-hosting is justified when data sovereignty requirements prohibit cloud storage or when storage volumes make per-user SaaS pricing impractical.

💾 You can find the repository used in this guide on GitHub.

NOTE

We’ll use Traefik as our reverse proxy. It’ll handle obtaining cryptographic certificates from Let’s Encrypt for your domain names and route requests to the corresponding services based on those domains.

CAUTION

To obtain cryptographic certificates, you will need A-type records in the external DNS zone, which point to the IP address of your server where Traefik is installed. If you have created these records recently, you should wait before starting the installation of the services. Full replication of these records between DNS servers can take from a few minutes to 48 hours or even longer in rare cases.

IMPORTANT

Docker Engine and Docker Compose must be installed on the server.

For a step-by-step guide on installing Docker Engine on Ubuntu Server, see Install Docker Engine and Docker Compose on Ubuntu Server

IMPORTANT

OpenSSH must be installed on the server, and port 22 must be open in order to be able to connect to the server using the SSH protocol.

To install OpenSSH on the server you can use the command:

1
sudo apt install openssh-server

NOTE

To connect to the server from a Windows system, you can use tools like PuTTY or MobaXterm.

NOTE

This guide walks you through connecting to a server with the iTerm2 terminal emulator on macOS.

CAUTION

You will need to open the following TCP ports for access to the services:

• TCP port 80 - to obtain a free cryptographic certificate through the Let’s Encrypt certification center.
• TCP port 443 - to access the ownCloud web interface.

We connect to the server on which ownCloud is planned to be installed.

Now it is necessary to create networks for your services.

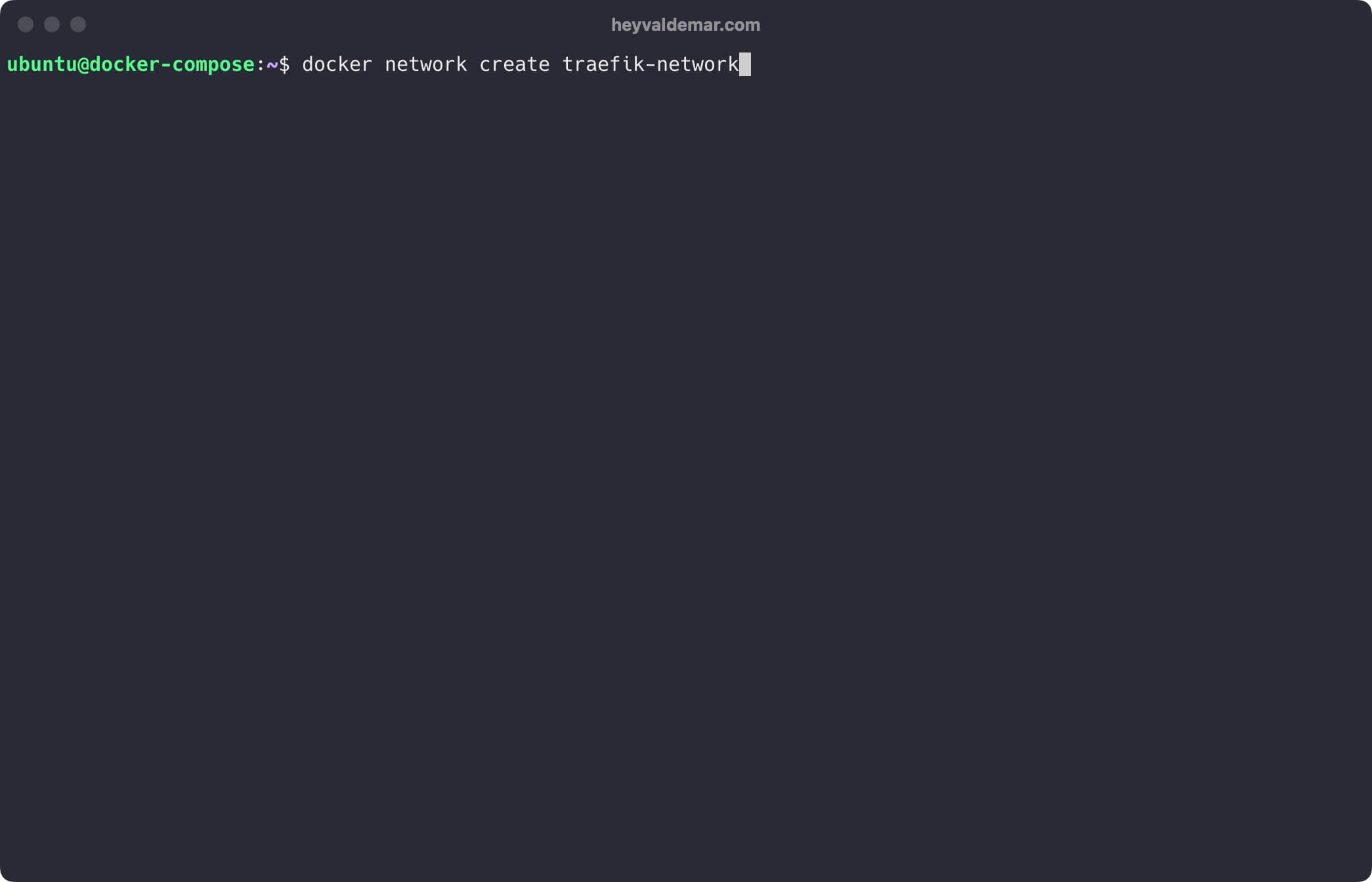

We create a network for Traefik using the command:

1
docker network create traefik-network

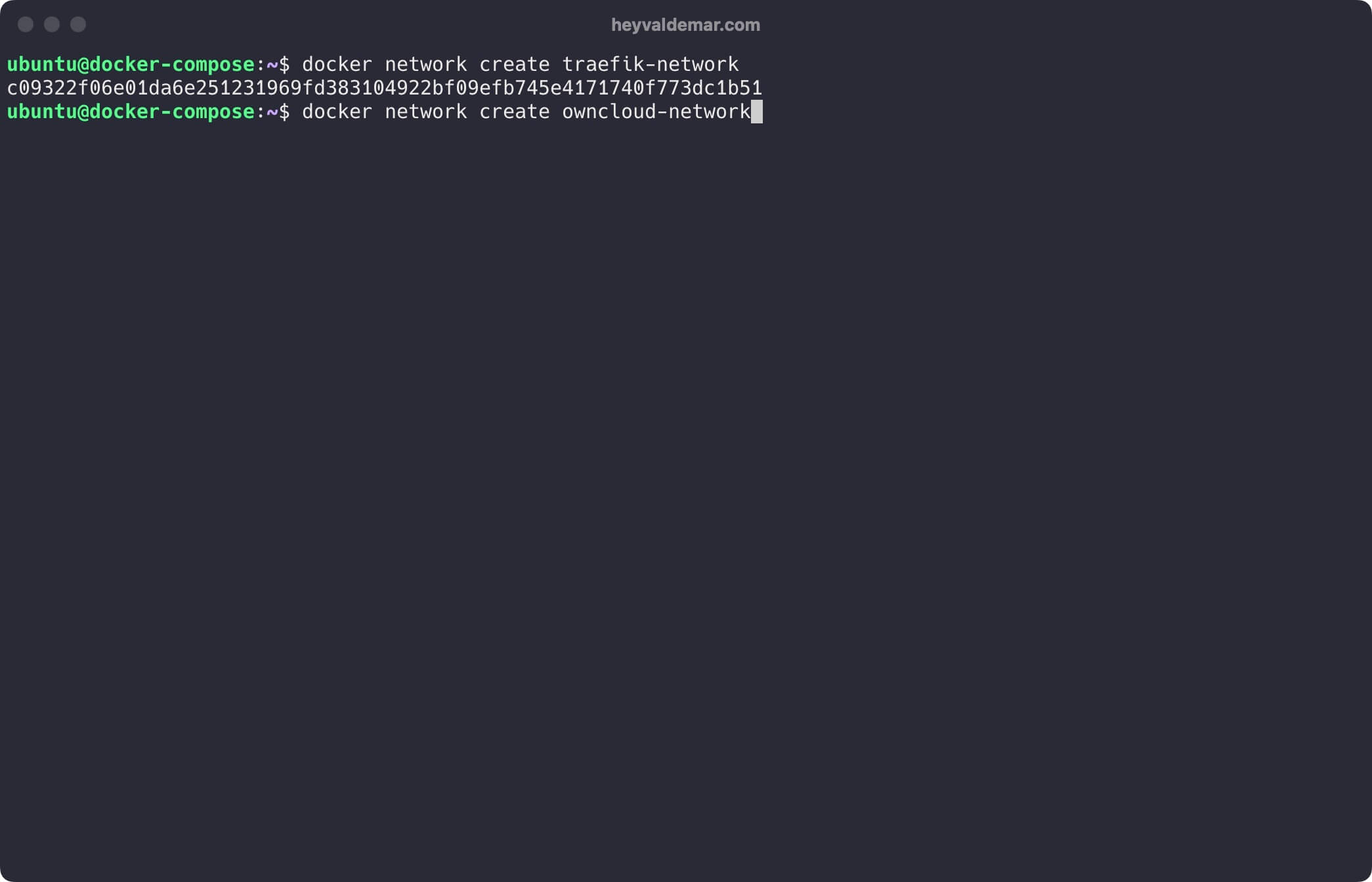

We create a network for ownCloud using the command:

1
docker network create owncloud-network

Next, you need to clone the repository that contains the configuration files, which include all the necessary conditions for ownCloud to work.

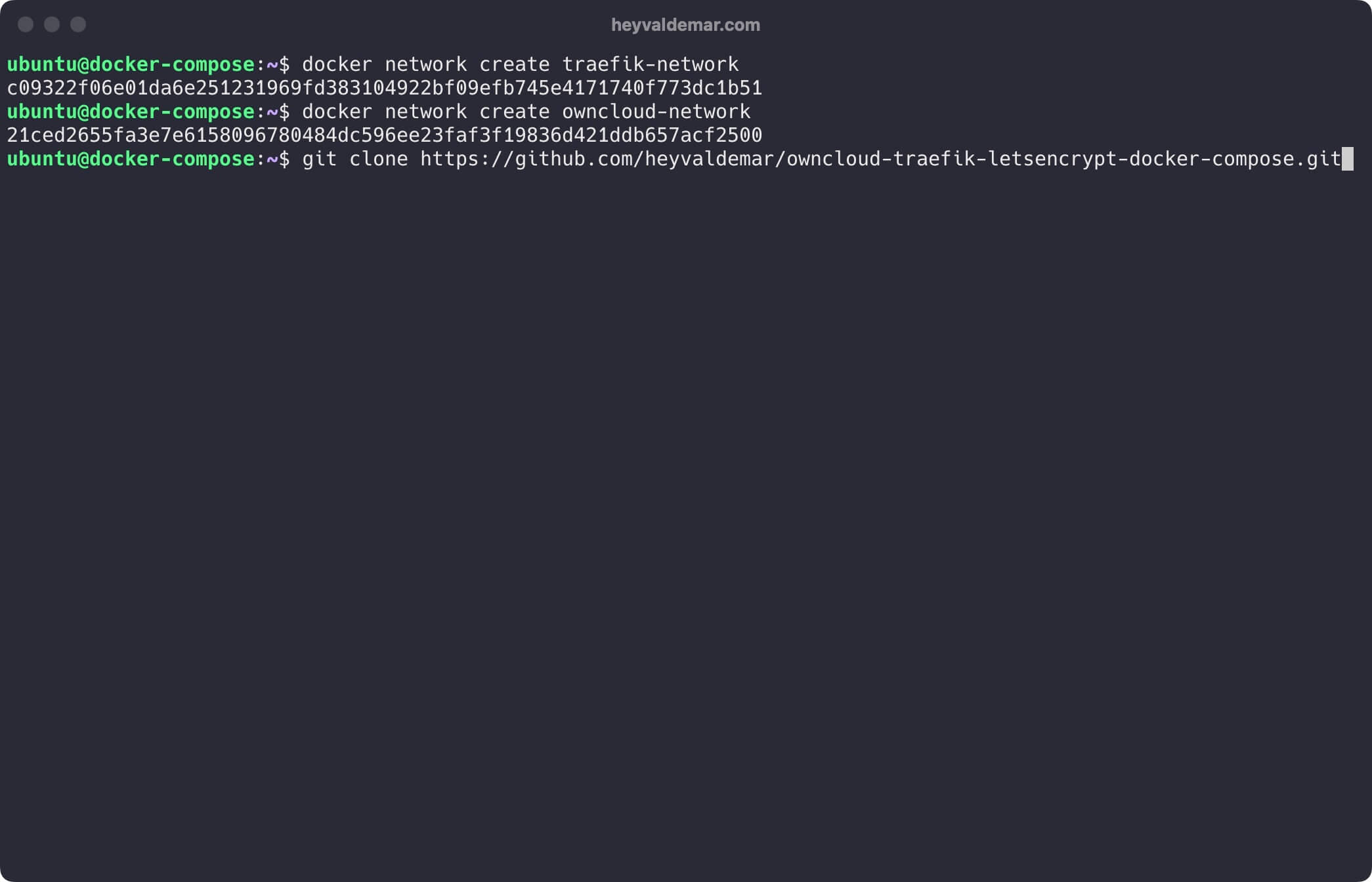

You can clone the repository using the command:

1
git clone https://github.com/heyvaldemar/owncloud-traefik-letsencrypt-docker-compose.git

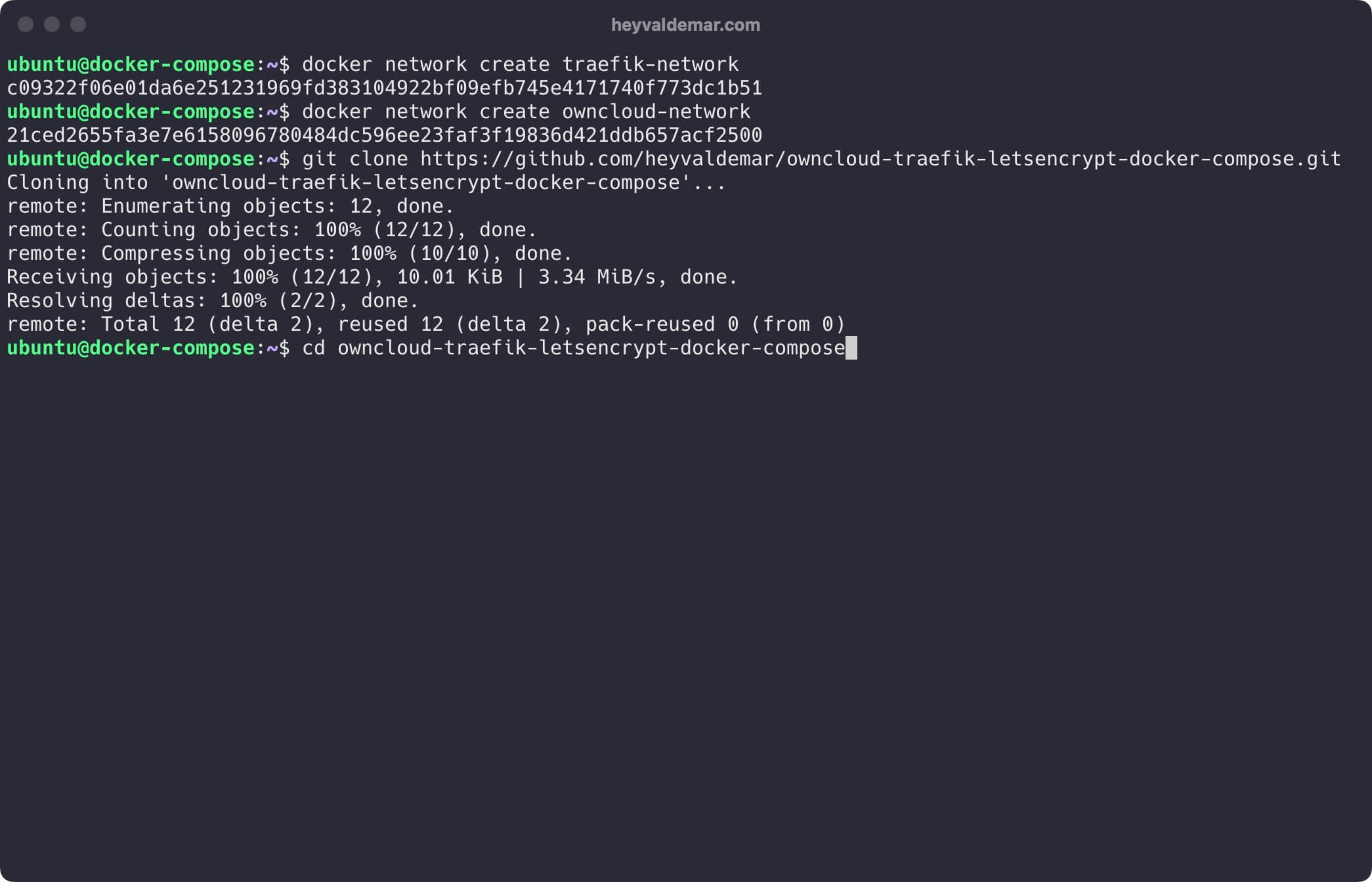

Navigate to the directory with the repository using the command:

1
cd owncloud-traefik-letsencrypt-docker-compose

Next, you need to change the variables in the .env file according to your requirements.

IMPORTANT

The .env file should be in the same directory as owncloud-traefik-letsencrypt-docker-compose.yml.

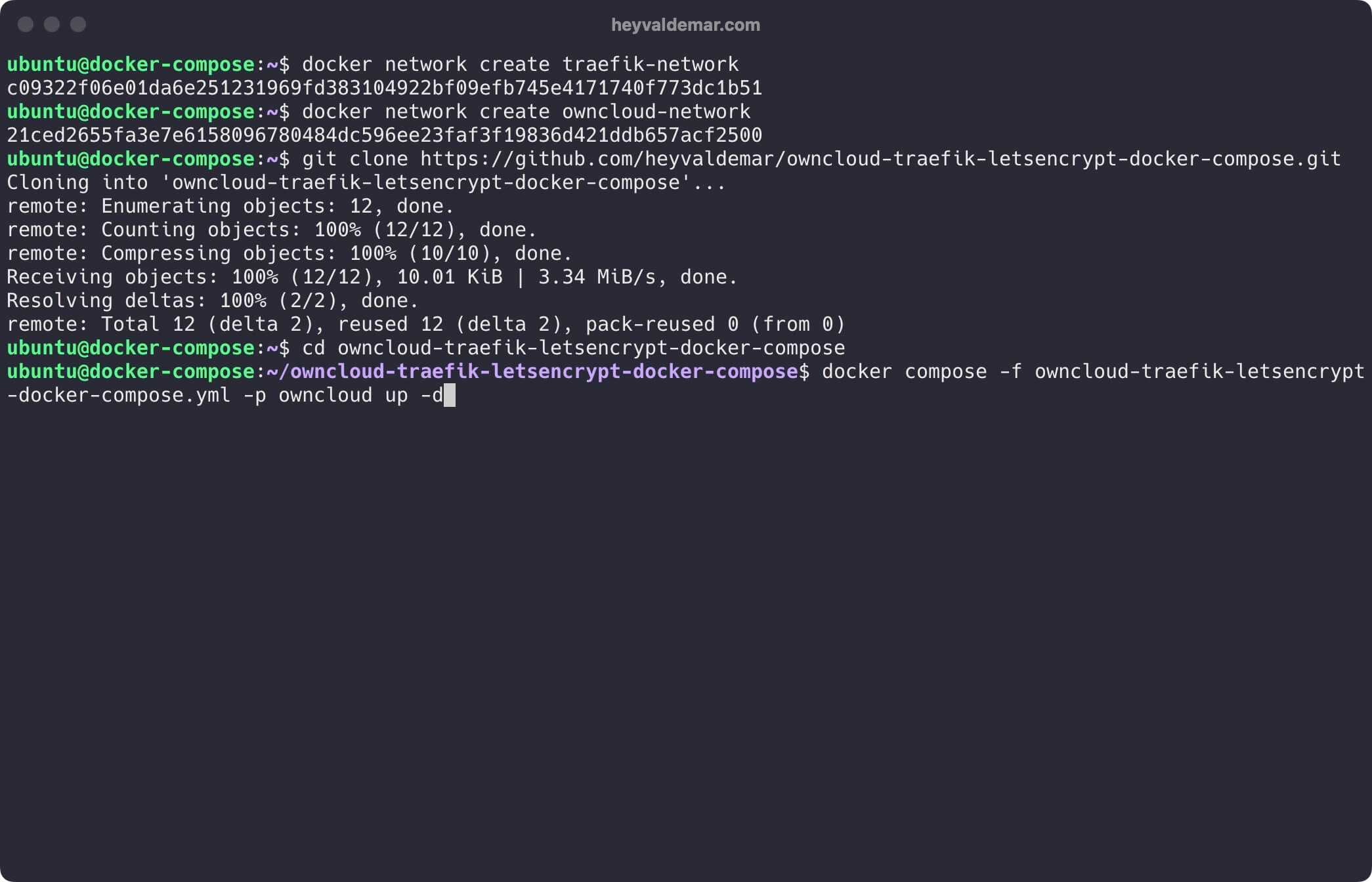

Now let’s start ownCloud with the command:

1
docker compose -f owncloud-traefik-letsencrypt-docker-compose.yml -p owncloud up -d

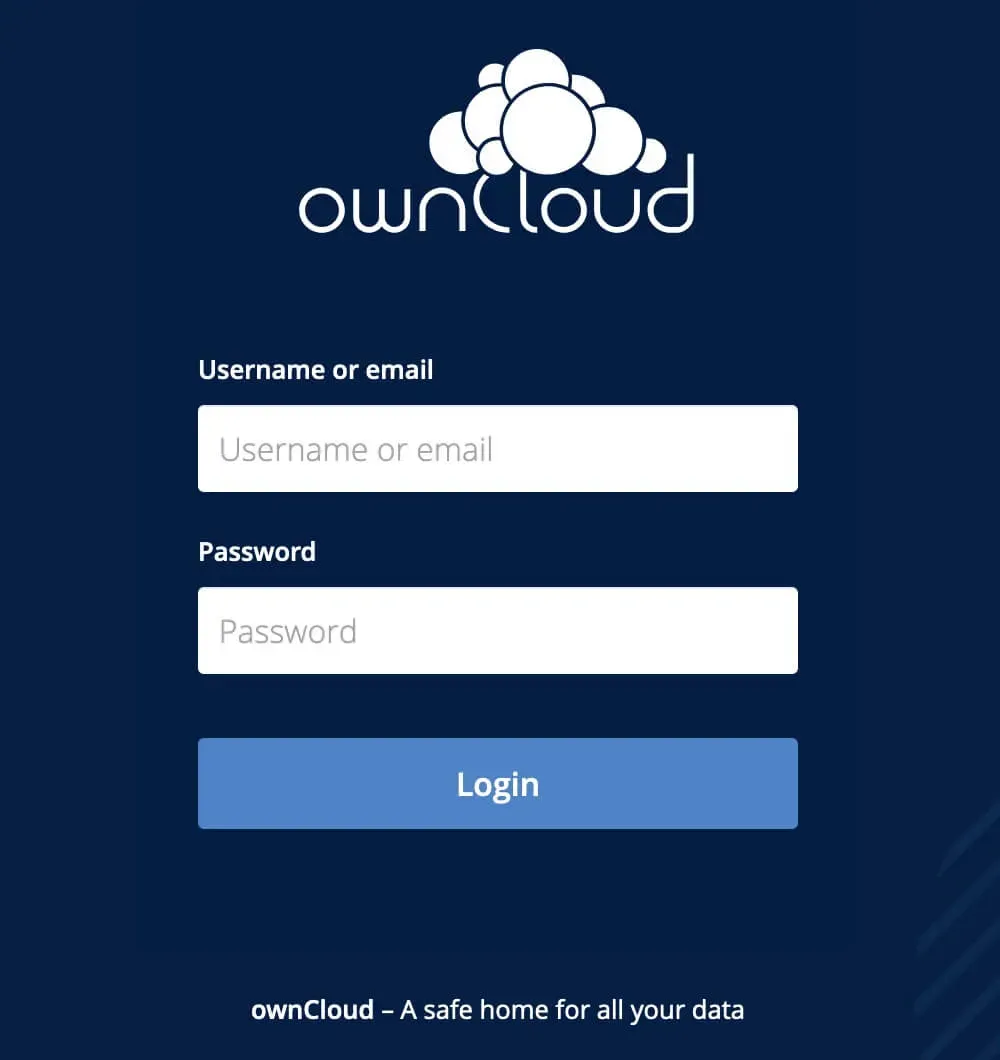

To access the ownCloud management panel, go to https://owncloud.heyvaldemar.net from your workstation, where owncloud.heyvaldemar.net is the domain name of my service. Accordingly, you need to specify your domain name that points to the IP address of your server with the installed Traefik service, which will redirect the request to ownCloud.

NOTE

You need to specify the domain name of the service, previously defined in the .env file.

The next step is to provide: workspace name, your full name, an email address and a password to create a ownCloud administrator account.

Click on the “Create workspace” button.

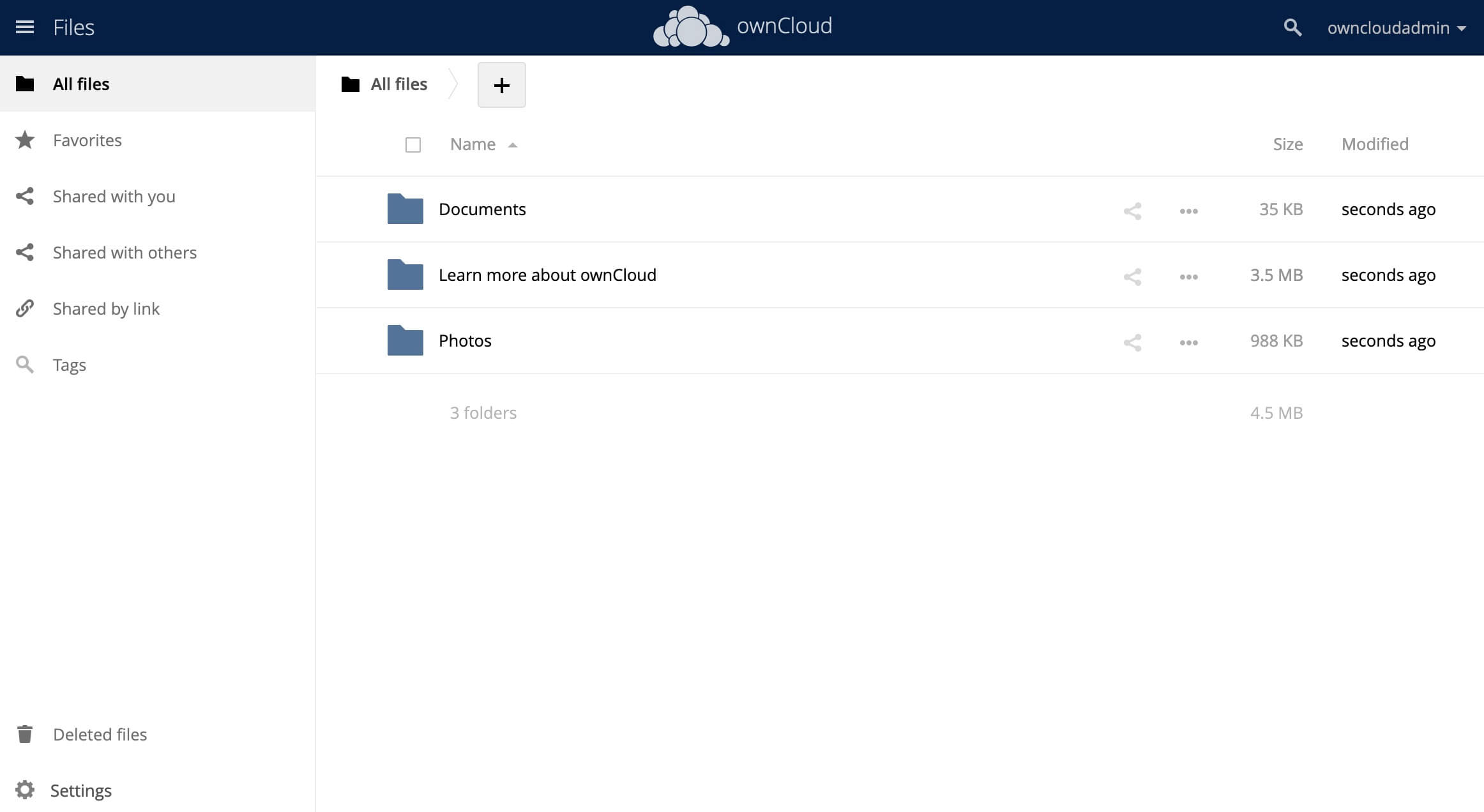

Welcome to the ownCloud control panel.

To access the Traefik control panel, go to https://traefik.owncloud.heyvaldemar.net from your workstation, where traefik.owncloud.heyvaldemar.net is the domain name of my service. Accordingly, you need to specify your domain name that points to the IP address of your server with the installed Traefik.

NOTE

You need to specify the domain name of the service, previously defined in the .env file.

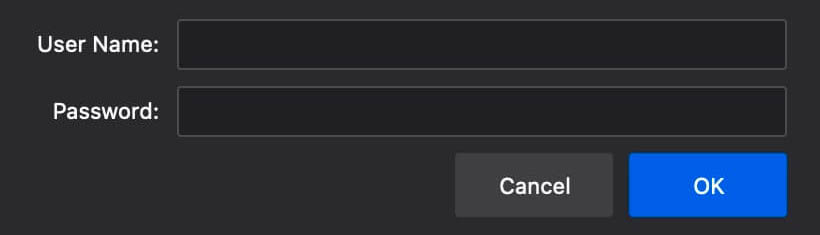

Enter the username and password previously set in the .env file, and click the “OK” button.

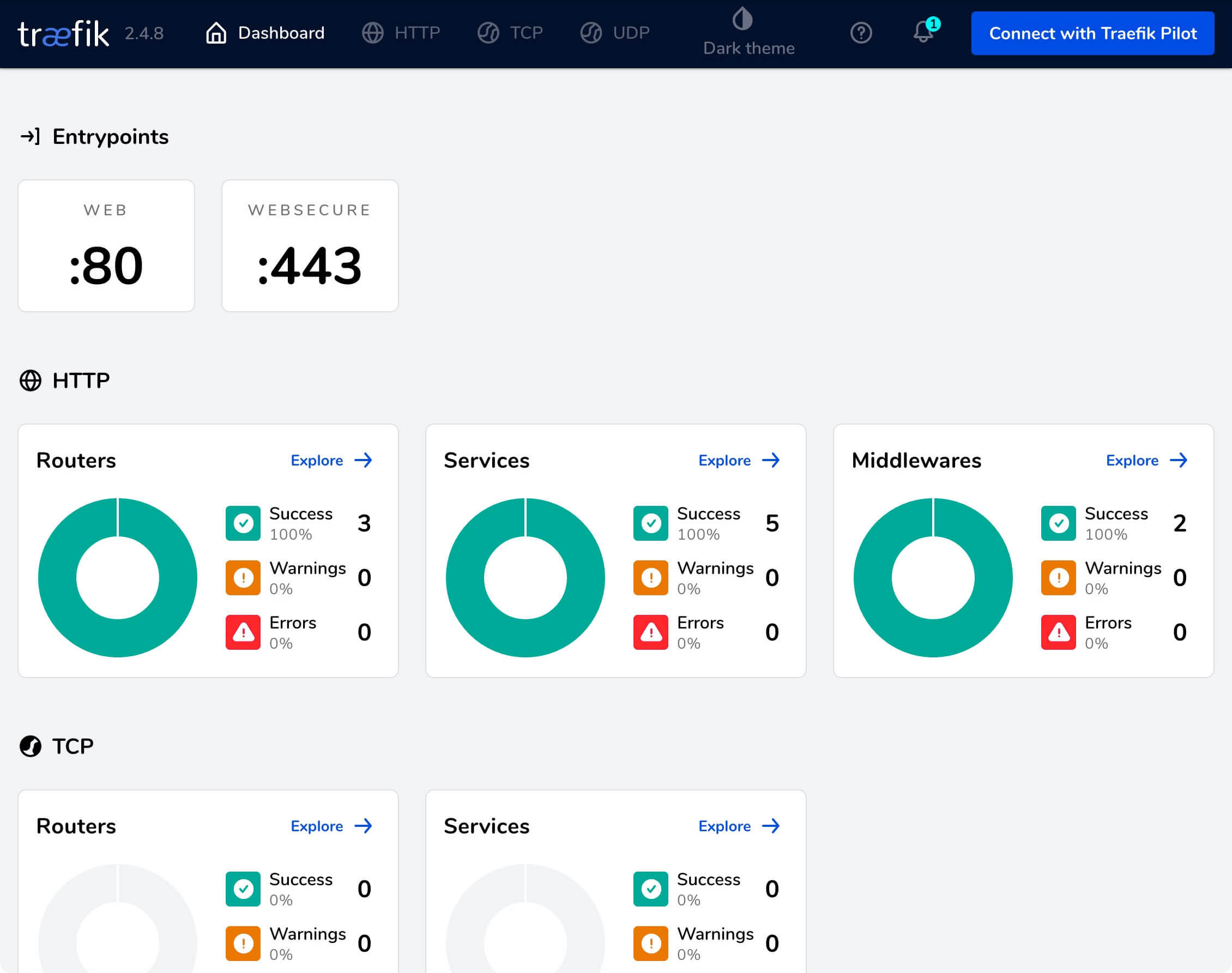

Welcome to the Traefik control panel.
